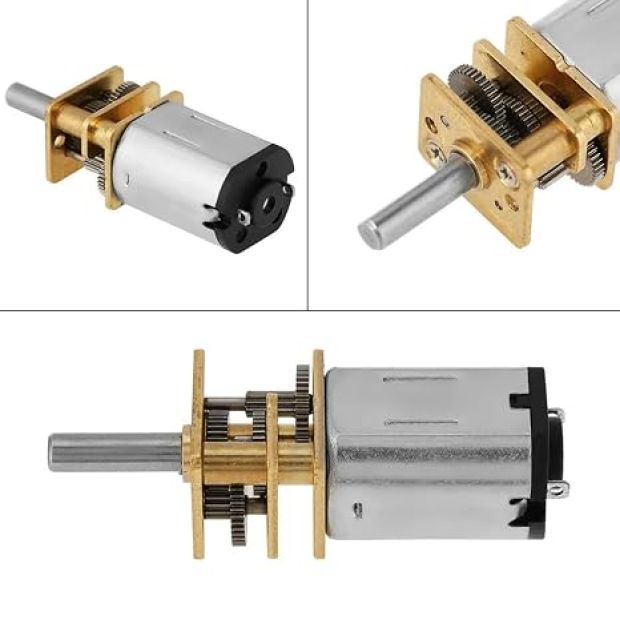

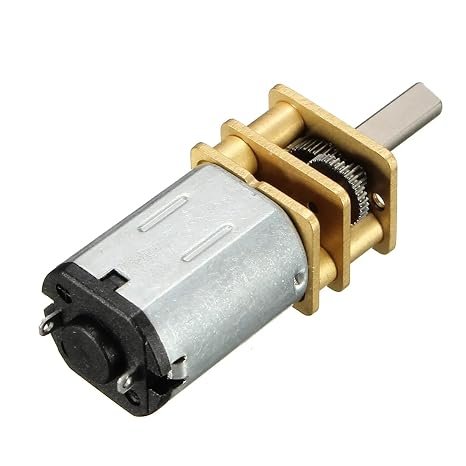

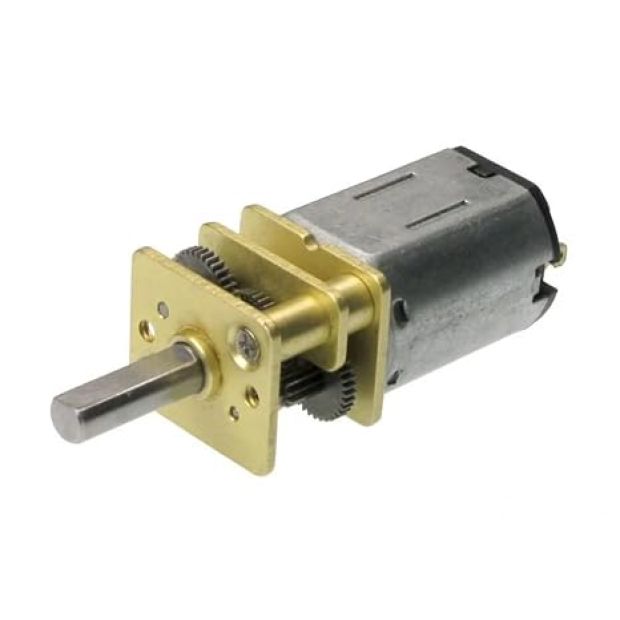

N20 Micro Gear 12V 100RPM DC Motor (High Torque Metal Gearbox)

Power your compact robotics and DIY automation projects with the N20 Micro Gear 12V 100RPM DC Motor. Featuring an all-metal gearbox, this high-torque micro motor delivers smooth, high-precision power output in an ultra-small form factor. Designed for low-power consumption and long operational lifespan, it is perfect for smart door locks, mini RC cars, automated curtains, medical devices, and precision micro-robotics. Operating at $12 ext{V DC}$ , it provides a balanced output speed of $100 ext{ RPM}$ with exceptional stall torque.

( No Reviews )

₹ 219 ^{₹ 299}

Order From Whatsapp

Seller Electro Boat

Tags N20 Micro Gear Motor 12V 100RPM N20 Metal Gearbox DC Motor 12V 100RPM Mini DC Motor High Torque N20 Gear Motor Micro Metal Gear Motor 12V

No Cancellation

No Returnable

Product Details :

Ultra-Compact High-Torque Powerhouse: Combines a miniature $12 ext{V}$ DC motor core with a multi-stage precision all-metal gearbox to deliver impressive torque output relative to its tiny footprint.
Durable All-Metal Gear Train: Heavy-duty steel and brass spur gears ensure superior wear resistance, low backlash, and long continuous operation without gear stripping.
Precision D-Shaped Output Shaft: Includes a standard $3 ext{mm}$ D-shaft for secure, slip-free mounting of wheels, pulleys, couplers, and mechanical levers.
Energy-Efficient Operation: Features low no-load current draw, making it highly suitable for battery-operated handheld devices, wireless robotics, and IoT nodes.
Versatile Power Input: Optimized for nominal $12 ext{V DC}$ operation, but operates safely between $6 ext{V}$ and $12 ext{V DC}$ for variable speed control using PWM motor drivers.

Key Features

Compact N20 form factor with all-metal gearbox
12V DC nominal operating voltage
Smooth $100 ext{ RPM}$ output speed at rated voltage
High stall torque capacity for heavy miniature loads
Standard D-shaped $3 ext{mm}$ steel output shaft
Low noise and low vibration performance
Easy solder tabs for quick wiring and motor driver integration

Technical Specifications

Parameter	Specification
Motor Type	N20 Micro DC Gear Motor
Gearbox Material	All-Metal (Steel/Brass Spur Gears)
Rated Voltage	$12 ext{V DC}$
Operating Voltage Range	$6 ext{V} - 12 ext{V DC}$
No-Load Speed	$100 ext{ RPM} pm 10%$ @ $12 ext{V}$
No-Load Current	$le 30 ext{mA}$
Stall Current	$sim 0.4 ext{A} - 0.5 ext{A}$ @ $12 ext{V}$
Rated Torque	$sim 0.8 ext{ kg}cdot ext{cm} - 1.2 ext{ kg}cdot ext{cm}$
Output Shaft Style	D-Shape ( $3.0 ext{mm}$ OD)
Direction of Rotation	Reversible (Swap $+ / -$ terminal polarity)

How to Use

Connect positive ( $+$ ) and negative ( $-$ ) supply wires to the solder tabs on the rear motor end-cap
Press-fit or set-screw attach compatible wheels or couplers onto the $3 ext{mm}$ D-shaft
Connect the motor leads to an H-bridge motor driver (such as L298N, L293D, or TB6612FNG)
Apply up to $12 ext{V DC}$ power supply to driver board
Adjust output speed via PWM signals and change rotation direction by swapping pin polarities

SAFETY NOTICE: Do not mechanically lock or stall the output shaft for extended periods while powered, as excessive stall current can strip tiny gear teeth or overheat the motor windings.
