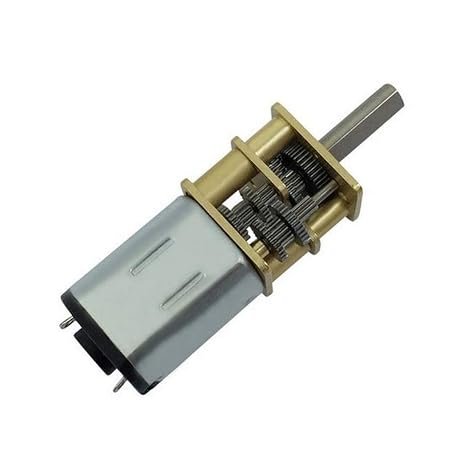

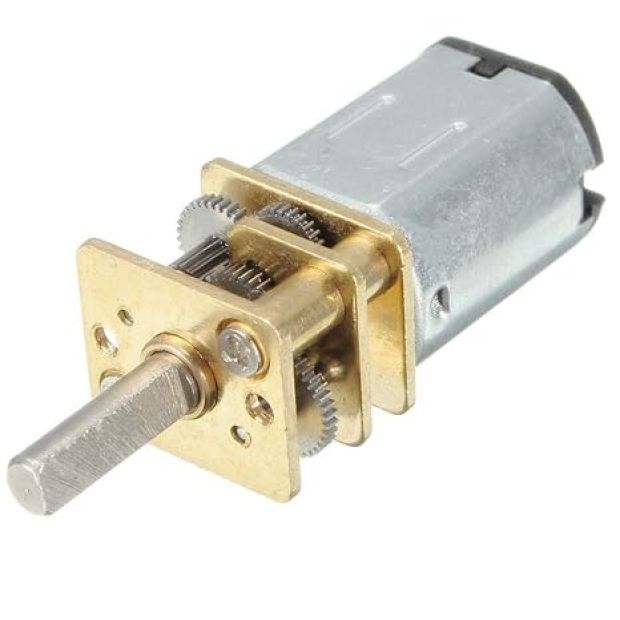

N20 Micro Gear 12V 300RPM DC Motor (High Torque Metal Gearbox)

Power your compact robotics and DIY automation projects with the N20 Micro Gear 12V 300RPM DC Motor. Featuring a precision all-metal gearbox, this high-speed micro motor delivers smooth, reliable power output in an ultra-small form factor. Designed for low power consumption and long operational lifespan, it is ideal for smart door locks, mini RC cars, line-following robots, automated mechanisms, and precision micro-actuators. Operating at $12 ext{V DC}$ , it provides a fast, well-balanced output speed of $300 ext{ RPM}$ .

( No Reviews )

₹ 229 ^{₹ 309}

Order From Whatsapp

Seller Electro Boat

Tags N20 Micro Gear Motor 12V 300RPM N20 Metal Gearbox DC Motor 12V 12V 300RPM Mini DC Motor High Torque N20 Gear Motor 12V Micro Metal Gear Motor 12V 12V N20 Motor 300RPM

No Cancellation

No Returnable

Product Details :

Ultra-Compact 12V Powerhouse: Combines a miniature $12 ext{V}$ DC motor core with a precision all-metal gearbox to deliver dependable torque and high rotation speeds in tight spaces.
Durable All-Metal Gear Train: Heavy-duty steel and brass spur gears ensure superior wear resistance, low backlash, and long continuous operation without gear stripping.
Precision D-Shaped Output Shaft: Includes a standard $3 ext{mm}$ D-shaft for secure, slip-free mounting of wheels, pulleys, couplers, and mechanical levers.
Energy-Efficient Operation: Features low power consumption, making it ideal for battery-operated handheld devices, 3S LiPo/12V setups, wireless robotics, and IoT nodes.
Versatile Power Input: Optimized for nominal $12 ext{V DC}$ operation, but operates safely between $6 ext{V}$ and $12 ext{V DC}$ for variable speed control using PWM motor drivers.

Key Features

Compact N20 form factor with durable all-metal gearbox
12V DC nominal operating voltage
Well-balanced $300 ext{ RPM}$ output speed at rated voltage
Reliable torque-to-speed ratio for fast miniature drive systems
Standard D-shaped $3 ext{mm}$ steel output shaft
Low noise and smooth operational performance
Direct solder tabs for easy wiring and driver integration

Technical Specifications

Parameter	Specification
Motor Type	N20 Micro DC Gear Motor
Gearbox Material	All-Metal (Steel/Brass Spur Gears)
Rated Voltage	$12 ext{V DC}$
Operating Voltage Range	$6 ext{V} - 12 ext{V DC}$
No-Load Speed	$300 ext{ RPM} pm 10%$ @ $12 ext{V}$
No-Load Current	$le 50 ext{mA}$
Stall Current	$sim 0.6 ext{A}$ @ $12 ext{V}$
Rated Torque	$sim 0.4 ext{ kg}cdot ext{cm} - 0.6 ext{ kg}cdot ext{cm}$
Output Shaft Style	D-Shape ( $3.0 ext{mm}$ OD)
Direction of Rotation	Reversible (Swap $+ / -$ terminal polarity)

How to Use

Connect positive ( $+$ ) and negative ( $-$ ) supply wires to the solder tabs on the rear motor end-cap
Attach compatible wheels, gears, or couplers onto the $3 ext{mm}$ D-shaft
Connect motor leads to an H-bridge motor driver (such as L298N, L293D, or TB6612FNG)
Apply up to $12 ext{V DC}$ power supply to the driver board
Control output speed using PWM signals and adjust rotation direction by toggling input pin polarities

SAFETY NOTICE: Avoid mechanically stalling the motor output shaft for extended periods while powered, as high stall current can generate internal heat and damage gear teeth.
