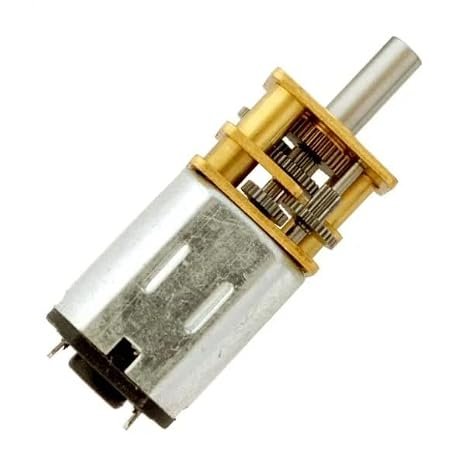

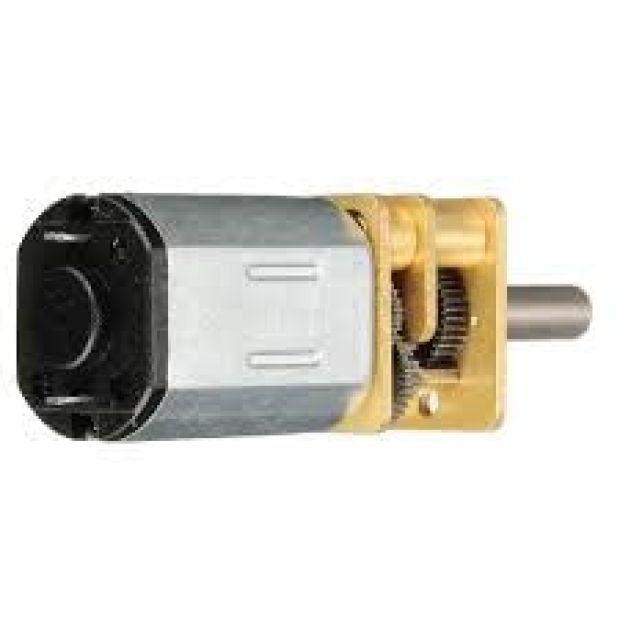

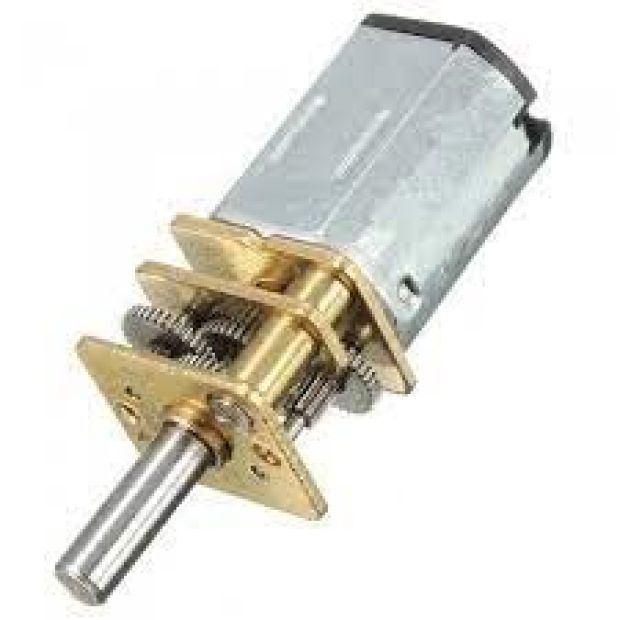

N20 Micro Gear 12V 400RPM DC Motor (Precision Metal Gearbox)

Accelerate your micro-robotics and compact automation builds with the N20 Micro Gear 12V 400RPM DC Motor. Featuring a precision all-metal gearbox, this high-speed micro DC motor delivers dynamic output and smooth drive performance in an ultra-compact package. Engineered for low power consumption and robust operational reliability, it is ideal for mini maze-solving robots, high-speed line followers, smart electronic lock systems, automated valves, and precision micro-mechanisms. Operating at a nominal $12 ext{V DC}$ , it yields a fast, well-regulated speed of $400 ext{ RPM}$ with dependable operational torque.

( No Reviews )

₹ 289 ^{₹ 379}

Order From Whatsapp

Seller Electro Boat

Tags N20 Micro Gear Motor 12V 400RPM N20 Metal Gearbox DC Motor 12V 12V 400RPM Mini DC Motor High Speed N20 Gear Motor 12V Micro Metal Gear Motor 12V 12V N20 Motor 400RPM

No Cancellation

No Returnable

Product Details :

Compact High-Speed Output: Combines a miniature $12 ext{V}$ DC core with a low-ratio precision all-metal gearbox to deliver rapid rotation speeds in tight mechanical enclosures.
Durable All-Metal Gear Train: Constructed with heavy-duty spur gears that resist surface wear, reduce rotational backlash, and maintain consistent output without tooth stripping.
Precision D-Shaped Output Shaft: Includes a standardized $3 ext{mm}$ D-shaft for slip-free attachment of wheels, timing pulleys, couplers, and small linkages.
Energy-Efficient Drive: Optimized for low electrical noise and power consumption, making it ideal for 3S LiPo battery systems, portable devices, and IoT hardware nodes.
Flexible Operating Range: Optimized for $12 ext{V DC}$ operation, but runs safely across $6 ext{V}$ to $12 ext{V DC}$ for dynamic speed adjustment via PWM motor controllers.

Key Features

Miniature N20 form factor with an all-metal gearbox unit
12V DC nominal operating voltage
High output speed of $400 ext{ RPM}$ at rated voltage
Excellent speed-to-size density for fast micro-drive applications
Standard D-shaped $3 ext{mm}$ steel output shaft
Direct solder tabs for quick wiring and driver board integration

Technical Specifications

Parameter	Specification
Motor Type	N20 Micro DC Gear Motor
Gearbox Material	All-Metal (Steel/Brass Spur Gears)
Rated Voltage	$12 ext{V DC}$
Operating Voltage Range	$6 ext{V} - 12 ext{V DC}$
No-Load Speed	$400 ext{ RPM} pm 10%$ @ $12 ext{V}$
No-Load Current	$le 60 ext{mA}$
Stall Current	$sim 0.70 ext{A} - 0.75 ext{A}$ @ $12 ext{V}$
Rated Torque	$sim 0.35 ext{ kg}cdot ext{cm}$
Stall Torque	$sim 1.0 ext{ kg}cdot ext{cm}$
Output Shaft Style	D-Shape ( $3.0 ext{mm}$ OD)
Direction of Rotation	Reversible (Swap $+ / -$ terminal polarity)

How to Use

Solder your positive ( $+$ ) and negative ( $-$ ) supply leads directly to the motor end-cap terminal pads.
Press-fit or set-screw compatible wheels or couplers onto the $3 ext{mm}$ D-shaft.
Wire the motor leads to a dual H-bridge driver module (such as TB6612FNG, L298N, or L293D).
Supply up to $12 ext{V DC}$ main power to your motor driver.
Adjust output rotation speed via PWM signals and flip rotation directions by toggling logic pin inputs.

SAFETY NOTICE: Avoid running the motor under a continuous locked-rotor stall condition at full $12 ext{V}$ input, as prolonged high currents can overheat the armature and degrade small gearbox teeth.
