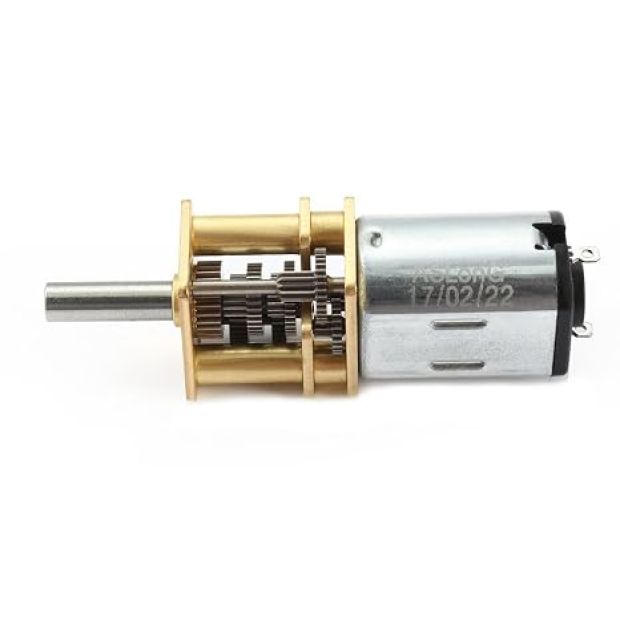

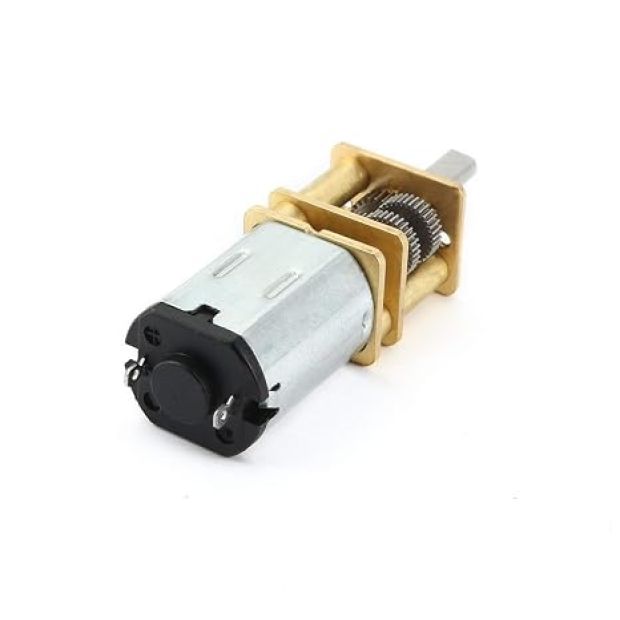

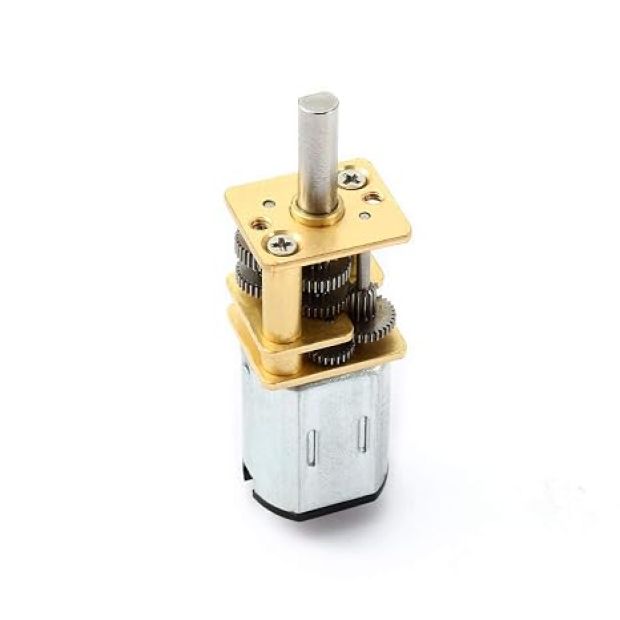

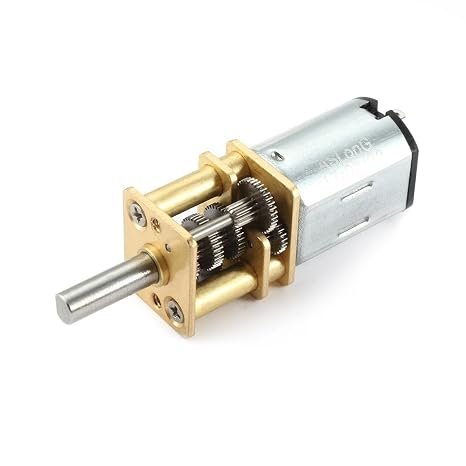

N20 Micro Gear 12V 600RPM DC Motor (High Speed Metal Gearbox)

Upgrade your high-speed miniature robotics and automation projects with the N20 Micro Gear 12V 600RPM DC Motor. Featuring a precision all-metal gearbox, this high-speed micro motor delivers smooth power output in an ultra-small form factor. Designed for low power consumption and long operational lifespan, it is ideal for fast line-following robots, mini RC vehicles, smart locks, automated mechanisms, and high-speed micro-actuators. Operating at $12 ext{V DC}$ , it provides a fast output speed of $600 ext{ RPM}$ .

( No Reviews )

₹ 239 ^{₹ 319}

Order From Whatsapp

Seller Electro Boat

Tags N20 Micro Gear Motor 12V 600RPM N20 Metal Gearbox DC Motor 12V 600RPM Mini DC Motor High Speed N20 Gear Motor Micro Metal Gear Motor 12V Fast N20 Motor 12V

No Cancellation

No Returnable

Product Details :

Ultra-Compact High-Speed Powerhouse: Combines a miniature $12 ext{V}$ DC motor core with a low-ratio precision all-metal gearbox to deliver rapid rotation output in a small footprint.
Durable All-Metal Gear Train: Heavy-duty steel and brass spur gears ensure superior wear resistance, low backlash, and reliable high-speed continuous operation.
Precision D-Shaped Output Shaft: Includes a standard $3 ext{mm}$ D-shaft for secure, slip-free mounting of wheels, couplers, and mechanical attachments.
Energy-Efficient Operation: Low no-load current draw makes it suitable for battery-operated wireless robotics, portable electronics, and IoT nodes.
Versatile Voltage Capability: Optimized for $12 ext{V DC}$ operation, but functions across a $6 ext{V}$ to $12 ext{V DC}$ range for variable PWM speed control.

Key Features

Compact N20 form factor with durable all-metal gearbox
12V DC nominal operating voltage
Rapid $600 ext{ RPM}$ output speed at rated voltage
Optimized torque-to-speed ratio for fast miniature drive systems
Standard D-shaped $3 ext{mm}$ output shaft
Low noise and smooth high-RPM operation
Direct solder tabs for easy wiring and motor driver hookup

Technical Specifications

Parameter	Specification
Motor Type	N20 Micro DC Gear Motor
Gearbox Material	All-Metal (Steel/Brass Spur Gears)
Rated Voltage	$12 ext{V DC}$
Operating Voltage Range	$6 ext{V} - 12 ext{V DC}$
No-Load Speed	$600 ext{ RPM} pm 10%$ @ $12 ext{V}$
No-Load Current	$le 60 ext{mA}$ ( $0.06 ext{A}$ )
Stall Current	$sim 0.75 ext{A}$ @ $12 ext{V}$
Rated Torque	$sim 0.18 ext{ kg}cdot ext{cm}$
Stall Torque	$sim 0.65 ext{ kg}cdot ext{cm}$
Output Shaft Style	D-Shape ( $3.0 ext{mm}$ OD)
Direction of Rotation	Reversible (Swap $+ / -$ terminal polarity)

How to Use

Connect positive ( $+$ ) and negative ( $-$ ) supply wires to the solder tabs on the motor end-cap
Attach compatible wheels, gears, or couplers onto the $3 ext{mm}$ D-shaft
Wire the motor leads to an H-bridge motor driver (such as L298N, L293D, or TB6612FNG)
Apply up to $12 ext{V DC}$ power supply to the driver board
Adjust output speed using PWM signals and flip rotation direction by changing signal polarity

SAFETY NOTICE: Avoid mechanically stalling the motor output shaft at full voltage, as high stall current can generate internal heat and shorten gearbox life.
