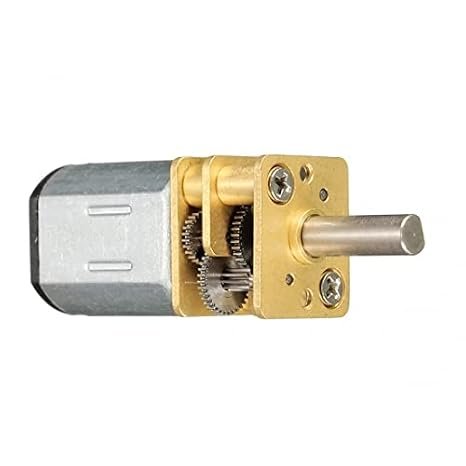

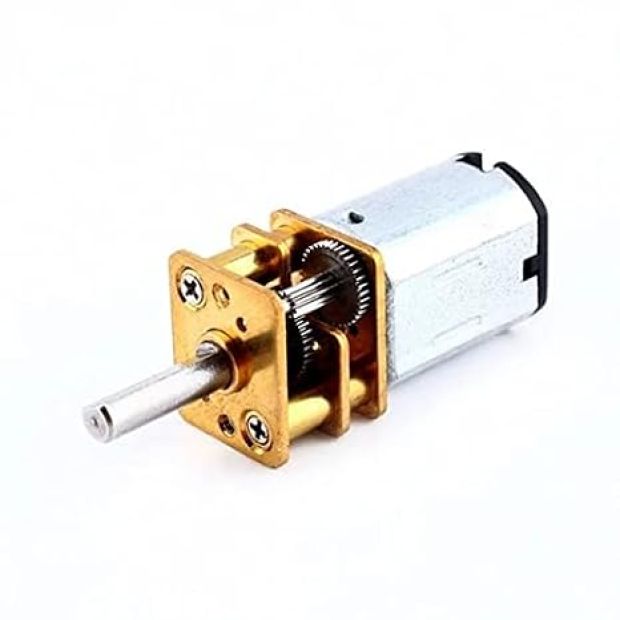

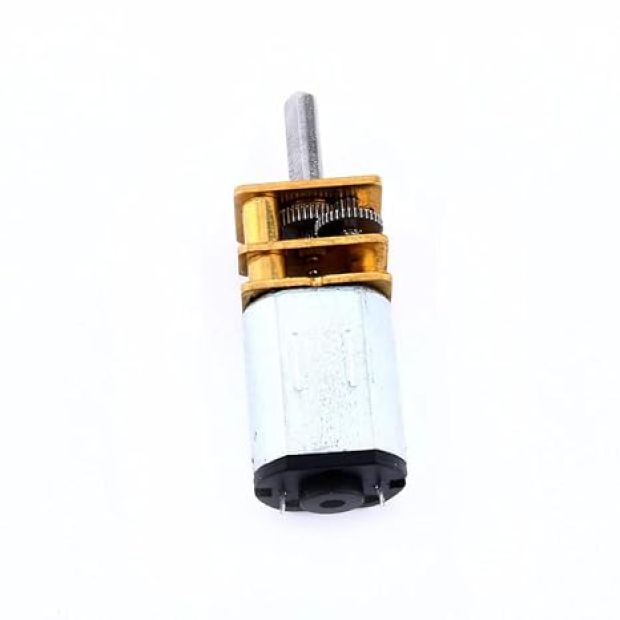

N20 Micro Gear 12V 60RPM DC Motor (High Torque Precision Metal Gearbox)

Power your compact robotics and heavy-duty micro-automation projects with the N20 Micro Gear 12V 60RPM DC Motor. Featuring a precision all-metal gearbox, this low-speed micro DC motor delivers maximum torque output in an ultra-small form factor. Designed for low power consumption and long operational lifespan, it is perfect for smart locks, mini climbing robots, automated valves, medical equipment, and heavy-duty micro-mechanisms. Operating at a nominal $12 ext{V DC}$ , it provides a smooth, controlled output speed of $60 ext{ RPM}$ with exceptional stall torque.

( No Reviews )

₹ 229 ^{₹ 309}

Order From Whatsapp

Seller Electro Boat

Tags N20 Micro Gear Motor 12V 60RPM N20 Metal Gearbox DC Motor 12V 12V 60RPM Mini DC Motor High Torque N20 Gear Motor 12V Micro Metal Gear Motor 12V Low RPM N20 Motor 12V

No Cancellation

No Returnable

Product Details :

Ultra-Compact High-Torque Powerhouse: Combines a miniature $12 ext{V}$ DC motor core with a high-reduction-ratio precision all-metal gearbox to deliver maximum torque at low rotation speeds.
Durable All-Metal Gear Train: Heavy-duty steel and brass spur gears ensure superior wear resistance, low backlash, and long continuous operation under mechanical loads without gear stripping.
Precision D-Shaped Output Shaft: Includes a standard $3 ext{mm}$ D-shaft for secure, slip-free mounting of wheels, pulleys, couplers, and mechanical levers.
Energy-Efficient Operation: Features low power consumption, making it ideal for battery-operated handheld devices, 3S LiPo/12V setups, wireless robotics, and IoT nodes.
Versatile Power Input: Optimized for nominal $12 ext{V DC}$ operation, but operates safely between $6 ext{V}$ and $12 ext{V DC}$ for variable speed control using PWM motor drivers.

Key Features

Compact N20 form factor with all-metal high-reduction gearbox
12V DC nominal operating voltage
Smooth, high-torque $60 ext{ RPM}$ output speed at rated voltage
Maximum stall torque capacity for heavy miniature lifting and driving applications
Standard D-shaped $3 ext{mm}$ steel output shaft
Low noise and steady operational performance
Direct solder tabs for easy wiring and driver integration

Technical Specifications

Parameter	Specification
Motor Type	N20 Micro DC Gear Motor
Gearbox Material	All-Metal (Steel/Brass Spur Gears)
Rated Voltage	$12 ext{V DC}$
Operating Voltage Range	$6 ext{V} - 12 ext{V DC}$
No-Load Speed	$60 ext{ RPM} pm 10%$ @ $12 ext{V}$
No-Load Current	$le 30 ext{mA}$
Stall Current	$sim 0.4 ext{A} - 0.5 ext{A}$ @ $12 ext{V}$
Rated Torque	$sim 1.2 ext{ kg}cdot ext{cm} - 1.5 ext{ kg}cdot ext{cm}$
Stall Torque	$sim 3.0 ext{ kg}cdot ext{cm}$
Output Shaft Style	D-Shape ( $3.0 ext{mm}$ OD)
Direction of Rotation	Reversible (Swap $+ / -$ terminal polarity)

How to Use

Connect positive ( $+$ ) and negative ( $-$ ) supply wires to the solder tabs on the rear motor end-cap
Attach compatible wheels, gears, or couplers onto the $3 ext{mm}$ D-shaft
Connect motor leads to an H-bridge motor driver (such as L298N, L293D, or TB6612FNG)
Apply up to $12 ext{V DC}$ power supply to the driver board
Control output speed using PWM signals and adjust rotation direction by toggling input pin polarities

SAFETY NOTICE: Avoid mechanically stalling the motor output shaft for extended periods at full $12 ext{V}$ input, as sustained stall currents can cause thermal buildup and shorten motor lifespan.
