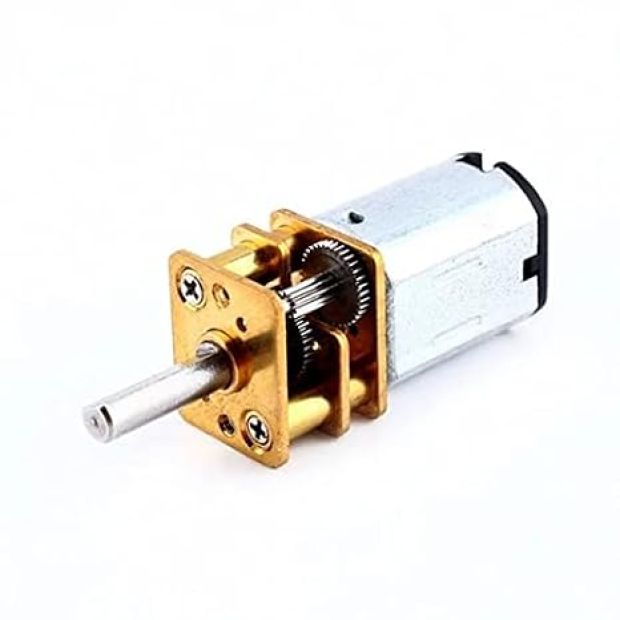

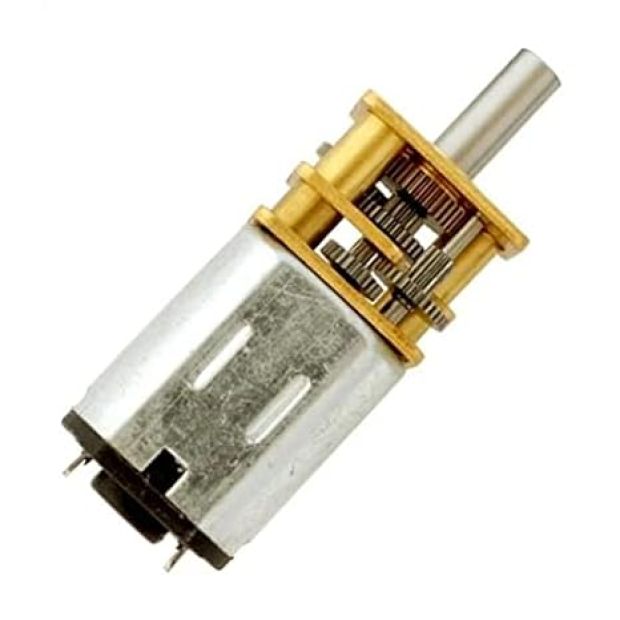

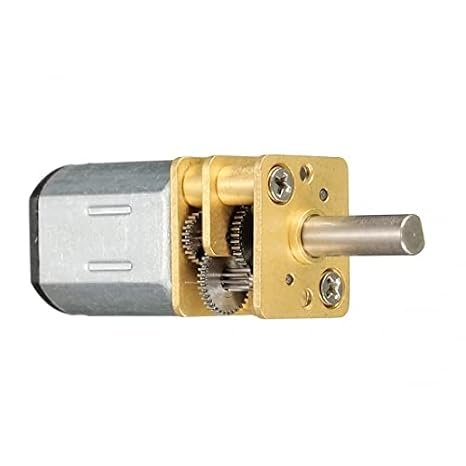

N20 Micro Gear 6V 300RPM DC Motor (Precision Metal Gearbox)

Power your high-speed miniature robotics and automation projects with the N20 Micro Gear 6V 300RPM DC Motor. Featuring an all-metal gearbox, this micro DC motor delivers smooth, high-precision performance in an ultra-small form factor. Designed for low power consumption and long operational lifespan, it is perfect for smart locks, mini RC vehicles, line-following robots, medical equipment, and precision micro-mechanisms. Operating at a nominal $6 ext{V DC}$ , it provides a well-balanced, high-speed output of $300 ext{ RPM}$ with reliable torque.

( No Reviews )

₹ 249 ^{₹ 329}

Order From Whatsapp

Seller Electro Boat

Tags N20 Micro Gear Motor 6V 300RPM N20 Metal Gearbox DC Motor 6V 6V 300RPM Mini DC Motor High Speed N20 Gear Motor 6V Micro Metal Gear Motor 6V 6V N20 Motor 300RPM

No Cancellation

No Returnable

Product Details :

Ultra-Compact Low-Voltage Powerhouse: Combines a miniature $6 ext{V}$ DC motor core with a low-ratio precision all-metal gearbox to deliver rapid rotation speeds at low operating voltages.
Durable All-Metal Gear Train: Heavy-duty steel and brass spur gears ensure superior wear resistance, low backlash, and long continuous operation without gear stripping.
Precision D-Shaped Output Shaft: Includes a standard $3 ext{mm}$ D-shaft for secure, slip-free mounting of wheels, pulleys, couplers, and mechanical levers.
Energy-Efficient Operation: Features low power consumption, making it ideal for battery-operated handheld devices, 1S/2S LiPo projects, wireless robotics, and IoT nodes.
Versatile Power Input: Optimized for nominal $6 ext{V DC}$ operation, but operates safely between $3 ext{V}$ and $6 ext{V DC}$ for variable speed control using low-voltage PWM motor drivers.

Key Features

Compact N20 form factor with durable all-metal gearbox
6V DC nominal operating voltage (ideal for AA battery or 1S/2S LiPo setups)
Fast $300 ext{ RPM}$ output speed at rated voltage
Well-balanced torque-to-speed ratio for agile drive systems
Standard D-shaped $3 ext{mm}$ steel output shaft
Low noise and minimal operational vibration
Direct solder tabs for easy wiring and driver integration

Technical Specifications

Parameter	Specification
Motor Type	N20 Micro DC Gear Motor
Gearbox Material	All-Metal (Steel/Brass Spur Gears)
Rated Voltage	$6 ext{V DC}$
Operating Voltage Range	$3 ext{V} - 6 ext{V DC}$
No-Load Speed	$300 ext{ RPM} pm 10%$ @ $6 ext{V}$
No-Load Current	$le 50 ext{mA}$
Stall Current	$sim 0.65 ext{A}$ @ $6 ext{V}$
Rated Torque	$sim 0.3 ext{ kg}cdot ext{cm} - 0.4 ext{ kg}cdot ext{cm}$
Stall Torque	$sim 0.9 ext{ kg}cdot ext{cm}$
Output Shaft Style	D-Shape ( $3.0 ext{mm}$ OD)
Direction of Rotation	Reversible (Swap $+ / -$ terminal polarity)

How to Use

Connect positive ( $+$ ) and negative ( $-$ ) supply wires to the solder tabs on the rear motor end-cap
Attach compatible wheels, gears, or couplers onto the $3 ext{mm}$ D-shaft
Connect motor leads to a low-voltage H-bridge motor driver (such as DRV8833, TB6612FNG, or L298N)
Apply up to $6 ext{V DC}$ power supply to the driver board
Control output speed using PWM signals and adjust rotation direction by toggling input pin polarities

SAFETY NOTICE: Do not mechanically lock or stall the output shaft for extended periods while powered, as high stall current can generate heat and damage internal gear teeth.
