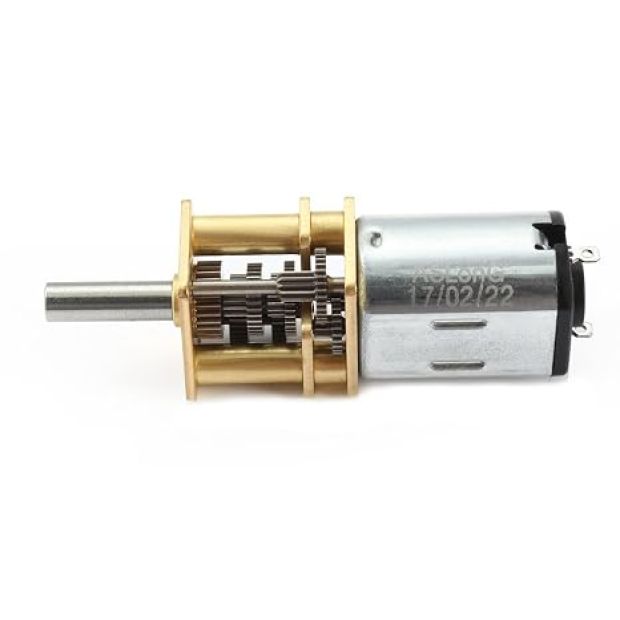

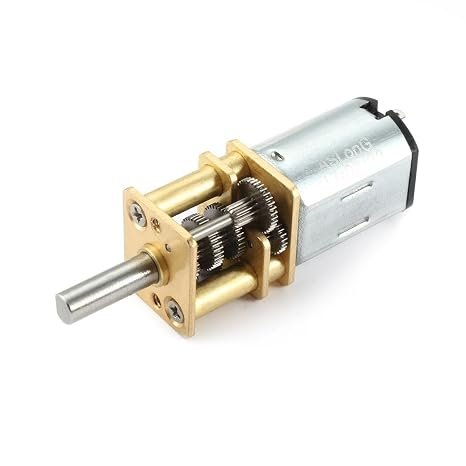

N20 Micro Gear 6V 600RPM DC Motor (Precision Metal Gearbox)

Achieve high-speed mini-motion and fast-response automation with the N20 Micro Gear 6V 600RPM DC Motor. Featuring a precision all-metal gearbox, this lightweight micro DC motor produces rapid, smooth output in an ultra-compact footprint. Designed for optimal power efficiency and long continuous service life, it is perfect for high-speed maze-solving robots, mini line followers, electronic locks, fast mini-actuators, and DIY smart hardware. Operating at a nominal $6 ext{V DC}$ , it delivers an impressive no-load speed of $600 ext{ RPM}$ alongside reliable torque output.

( No Reviews )

₹ 229 ^{₹ 309}

Order From Whatsapp

Seller Electro Boat

Tags N20 Micro Gear Motor 6V 600RPM N20 Metal Gearbox DC Motor 6V 6V 600RPM Mini DC Motor High Speed N20 Gear Motor 6V Micro Metal Gear Motor 6V 6V N20 Motor 600RPM

No Cancellation

No Returnable

Product Details :

Ultra-Fast Micro-Drive: Integrates a $6 ext{V}$ core with a micro low-ratio spur gearbox to deliver fast $600 ext{ RPM}$ rotation speeds where rapid movement is essential.
Durable All-Metal Gear Train: Built with high-precision steel and brass spur gears to ensure wear resistance, minimal backlash, and extended operating life under dynamic drive loads.

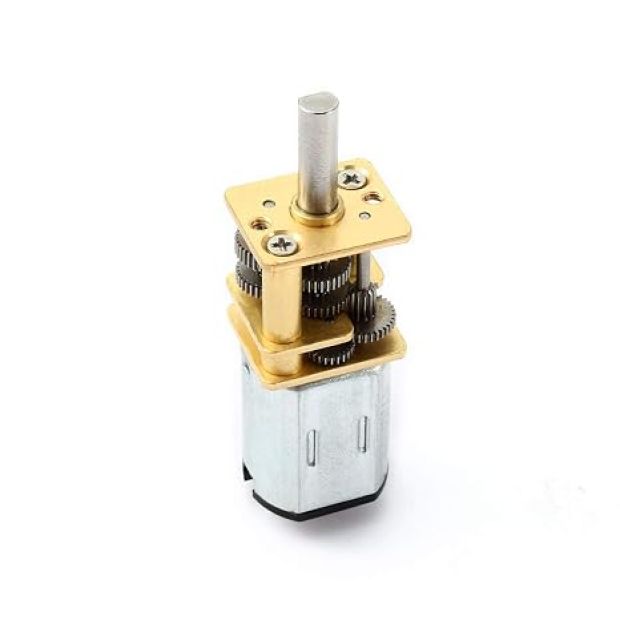

Precision D-Shaped Output Shaft: Uses a standardized $3 ext{mm}$ single-side D-shaft for non-slip coupling with mini wheels, timing pulleys, gears, and drive linkages.
Energy-Efficient Circuitry: Features exceptionally low no-load current draw ( $sim 40 ext{mA}$ ), making it ideal for battery-powered setups like 1S/2S LiPo battery systems and portable IoT hardware.
Wide Operating Voltage Range: Rated at $6 ext{V DC}$ , but operates smoothly down to $3 ext{V DC}$ for dynamic speed scaling through PWM motor driver boards.

Key Features

Miniature N20 form factor with precision all-metal gearing
6V DC nominal operating voltage
High-speed $600 ext{ RPM}$ output for ultra-responsive drive systems
Low power consumption and minimal electrical noise
Standard D-shaped $3 ext{mm}$ output shaft

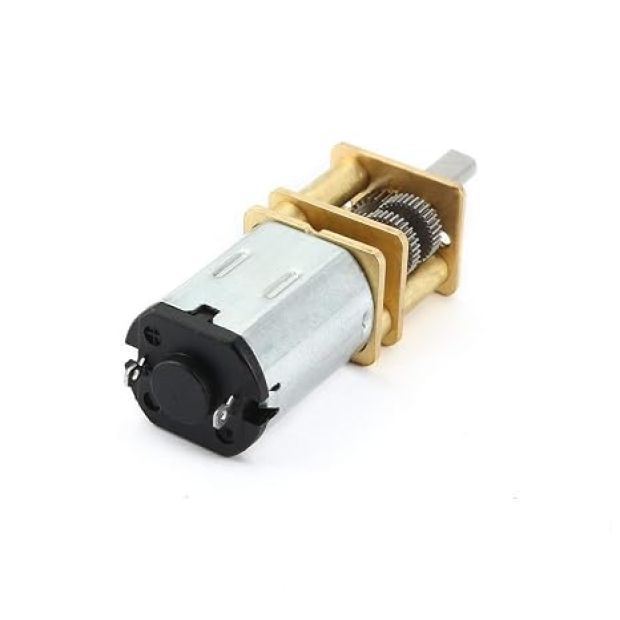

Direct solder terminals on the end-cap for simple wiring and driver connection

Technical Specifications

Parameter	Specification
Motor Type	N20 Micro DC Gear Motor
Gearbox Material	All-Metal (Steel/Brass Spur Gears)
Rated Voltage	$6 ext{V DC}$
Operating Voltage Range	$3 ext{V} - 6 ext{V DC}$
No-Load / Rated Speed	$600 ext{ RPM} pm 10%$ @ $6 ext{V}$
No-Load Current	$sim 0.04 ext{A} (40 ext{mA})$
Stall Current	$sim 0.67 ext{A}$ @ $6 ext{V}$
Rated Torque	$sim 0.14 ext{ kg}cdot ext{cm}$
Stall Torque	$sim 0.54 ext{ kg}cdot ext{cm}$
Output Shaft Style	D-Shape ( $3.0 ext{mm}$ OD)
Direction of Rotation	Reversible (Swap $+ / -$ terminal polarity)

How to Use

Solder your power wires to the small positive ( $+$ ) and negative ( $-$ ) terminals located at the back of the motor end-cap.
Push-fit or mount compatible robot wheels, couplers, or gears onto the $3 ext{mm}$ D-shaft.
Wire the motor leads to a suitable low-voltage motor driver module (e.g., DRV8833, TB6612FNG, or L298N).
Power your driver board with up to $6 ext{V DC}$ .
Modulate speed using PWM control signals and reverse direction by swapping pin polarities.

SAFETY NOTICE: Avoid running the motor under a continuously stalled load at full voltage ( $6 ext{V}$ ), as the full stall current ( $0.67 ext{A}$ ) can overheat the armature winding and strain the micro-gear train.

Applications

Ultra-fast line-following, maze-solving, and micro-robotics competition platforms
Electronic smart door locks, mini deadbolts, and motorized latches
Automatic window blind actuators and automated micro-valves
Electric mini-screwdrivers, lab dosing mechanisms, and precision pumps
RC micro vehicles, model trains, and fast-moving pan-tilt mechanisms
STEM educational kits and custom prototype builds
