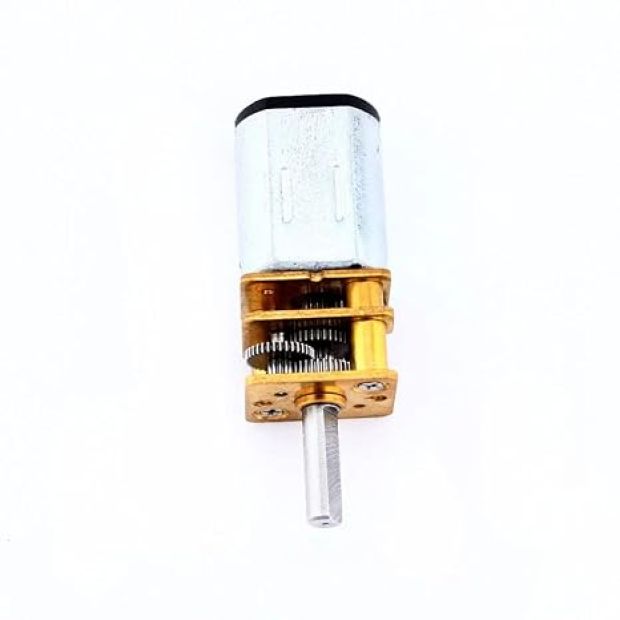

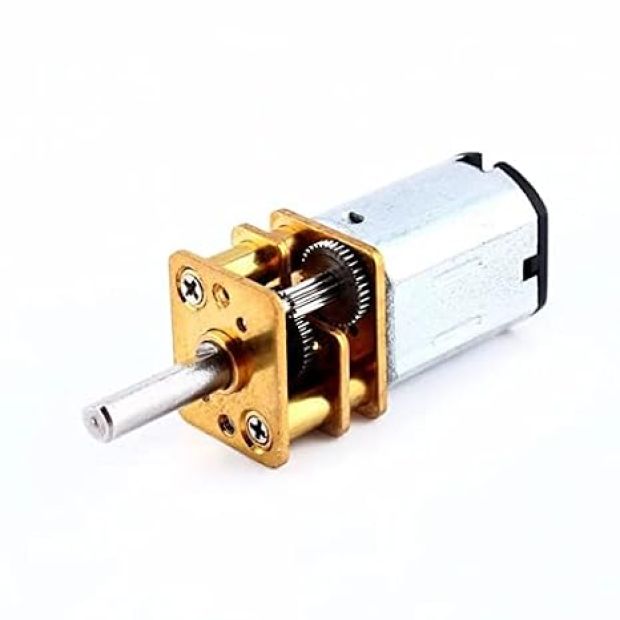

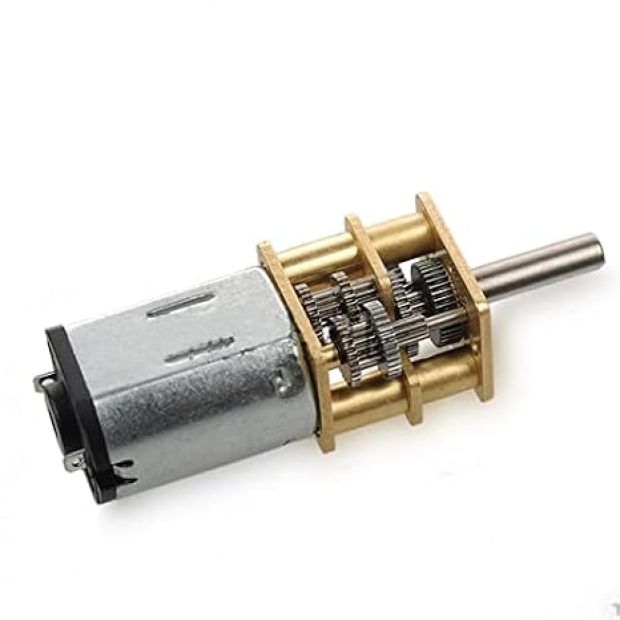

N20 Micro Gear 6V 60RPM DC Motor (High Torque Precision Metal Gearbox)

Power your compact robotics and high-torque automation projects with the N20 Micro Gear 6V 60RPM DC Motor. Featuring a heavy-duty all-metal gearbox, this low-speed micro DC motor delivers maximum torque output in an ultra-small form factor. Designed for low power consumption and long operational lifespan, it is perfect for smart locks, mini climbing robots, automated valves, medical devices, and heavy-duty micro-mechanisms. Operating at a nominal $6 ext{V DC}$ , it provides a smooth, controlled output speed of $60 ext{ RPM}$ with up to $2.6 ext{ kg}cdot ext{cm}$ stall torque.

( No Reviews )

₹ 219 ^{₹ 299}

Order From Whatsapp

Seller Electro Boat

Tags N20 Micro Gear Motor 6V 60RPM N20 Metal Gearbox DC Motor 6V 6V 60RPM Mini DC Motor High Torque N20 Gear Motor Micro Metal Gear Motor 6V Low RPM N20 Motor 6V

No Cancellation

No Returnable

Product Details :

Ultra-Compact High-Torque Powerhouse: Combines a miniature $6 ext{V}$ DC motor core with a high-reduction-ratio precision all-metal gearbox to deliver exceptional torque at low rotation speeds.
Durable All-Metal Gear Train: Heavy-duty steel and brass spur gears ensure superior wear resistance, low backlash, and high resistance to stripping under heavy mechanical loads.
Precision D-Shaped Output Shaft: Includes a standard $3 ext{mm}$ D-shaft for secure, slip-free mounting of wheels, pulleys, couplers, and mechanical levers.
Energy-Efficient Low-Voltage Operation: Low power draw makes it ideal for battery-operated handheld devices, 1S/2S LiPo projects, wireless robotics, and IoT automation nodes.
Versatile Voltage Capability: Optimized for nominal $6 ext{V DC}$ operation, but functions reliably across a $3 ext{V}$ to $6 ext{V DC}$ range for speed control using PWM motor drivers.

Key Features

Compact N20 form factor with all-metal high-reduction gearbox
6V DC nominal operating voltage
Smooth, high-torque $60 ext{ RPM}$ output speed at rated voltage
Exceptional stall torque capacity ( $sim 2.6 ext{ kg}cdot ext{cm}$ ) for climbing and heavy lifting
Standard D-shaped $3 ext{mm}$ steel output shaft
Low noise and steady operational performance
Direct solder tabs for easy wiring and driver integration

Technical Specifications

Parameter	Specification
Motor Type	N20 Micro DC Gear Motor
Gearbox Material	All-Metal (Steel/Brass Spur Gears)
Rated Voltage	$6 ext{V DC}$
Operating Voltage Range	$3 ext{V} - 6 ext{V DC}$
No-Load Speed	$60 ext{ RPM} pm 10%$ @ $6 ext{V}$
No-Load Current	$le 40 ext{mA}$ ( $0.04 ext{A}$ )
Stall Current	$sim 0.67 ext{A}$ @ $6 ext{V}$
Rated Torque	$sim 0.65 ext{ kg}cdot ext{cm}$
Stall Torque	$sim 2.6 ext{ kg}cdot ext{cm}$
Output Shaft Style	D-Shape ( $3.0 ext{mm}$ OD)
Direction of Rotation	Reversible (Swap $+ / -$ terminal polarity)

How to Use

Connect positive ( $+$ ) and negative ( $-$ ) supply wires to the solder tabs on the rear motor end-cap
Attach compatible wheels, gears, or couplers onto the $3 ext{mm}$ D-shaft
Connect motor leads to a low-voltage H-bridge motor driver (such as DRV8833, TB6612FNG, or L298N)
Apply up to $6 ext{V DC}$ power supply to the driver board
Control output speed using PWM signals and adjust rotation direction by toggling input pin polarities

SAFETY NOTICE: While this motor has excellent stall torque capabilities, avoid holding the shaft locked for prolonged periods under full voltage to prevent motor thermal overload.
