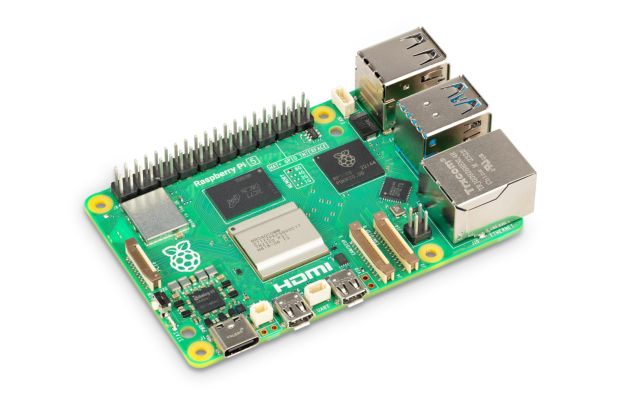

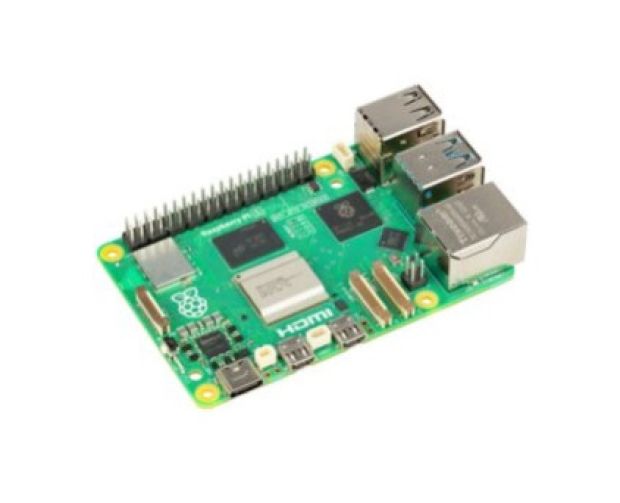

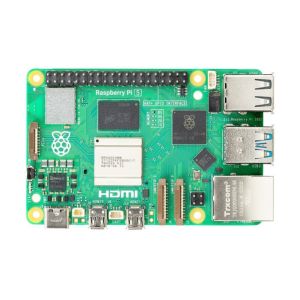

???? Raspberry Pi 5 – Description

???? Overview:

The Raspberry Pi 5 is the most powerful and advanced single-board computer released by the Raspberry Pi Foundation to date. It features a significant performance boost over its predecessor (Raspberry Pi 4), with a 64-bit quad-core ARM Cortex-A76 processor, faster RAM, PCIe support, and improved I/O.

This upgrade makes the Pi 5 suitable not just for hobbyist projects, but also for professional applications, edge computing, media centers, and desktop replacements.

⚙️ Key Features:

• Processor:

  • Broadcom BCM2712

  • Quad-core ARM Cortex-A76 @ 2.4 GHz

  • 64-bit architecture

  • Up to 2–3× performance over Raspberry Pi 4

• RAM Options:

  • Available in 4GB or 8GB LPDDR4X-4267 SDRAM

  • Higher bandwidth and lower power consumption than previous models

• Graphics:

  • Broadcom VideoCore VII GPU

  • Supports dual 4Kp60 HDMI displays

  • Hardware decoding of H.265, H.264

• Storage & Expansion:

  • microSD card slot (UHS-I support for faster I/O)

  • PCIe 2.0 x1 expansion via FFC connector (for SSDs, network cards, etc.)

• Connectivity:

  • 2 × USB 3.0

  • 2 × USB 2.0

  • Gigabit Ethernet

  • Wi-Fi 802.11ac (dual-band)

  • Bluetooth 5.0

• Camera & Display:

  • 2 × 4-lane MIPI connectors (supporting dual cameras or displays)

  • DSI/CSI combo ports with FPC connectors

• Power:

  • USB-C with PD (Power Delivery) support

  • Up to 5V/5A (25W) input recommended

• GPIO:

  • 40-pin header (same layout as Pi 4, backward compatible)

  • Supports HATs and GPIO accessories

• Real-Time Clock (RTC):

  • Onboard RTC with battery backup support (new in Pi 5)

• Cooling:

  • Much improved thermal performance

  • Actively cooled with optional official active cooler or case fan

???? Technical Specifications:

???? Ideal Applications:

• Desktop computing and programming

• High-speed data acquisition and storage

• AI/ML and edge inference

• Dual-camera computer vision systems

• Home automation, NAS, and media servers

• Embedded systems and industrial control

• Web and database servers with SSD storage

✅ What's New in Raspberry Pi 5:

• 2–3× CPU performance increase over Pi 4

• Faster GPU and RAM (LPDDR4X)

• Native PCIe for fast SSDs or peripherals

• Dual MIPI ports for simultaneous camera + display

• Onboard RTC, power button support

• Active cooling support (necessary for heavy loads)
