Detailed Description:

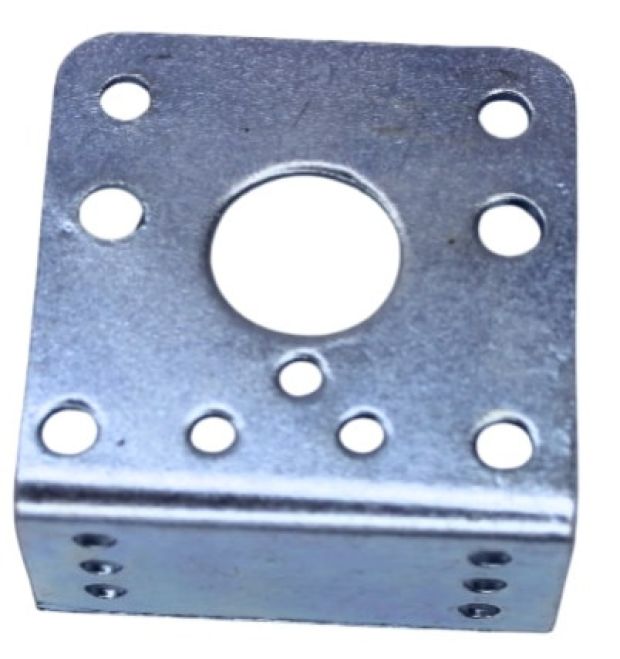

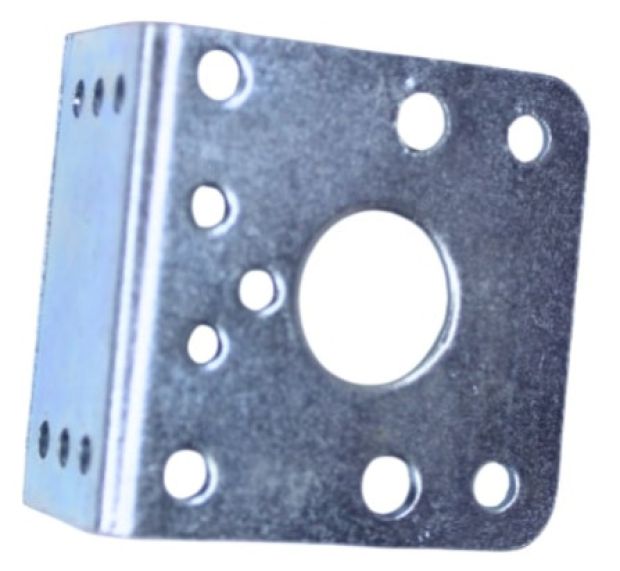

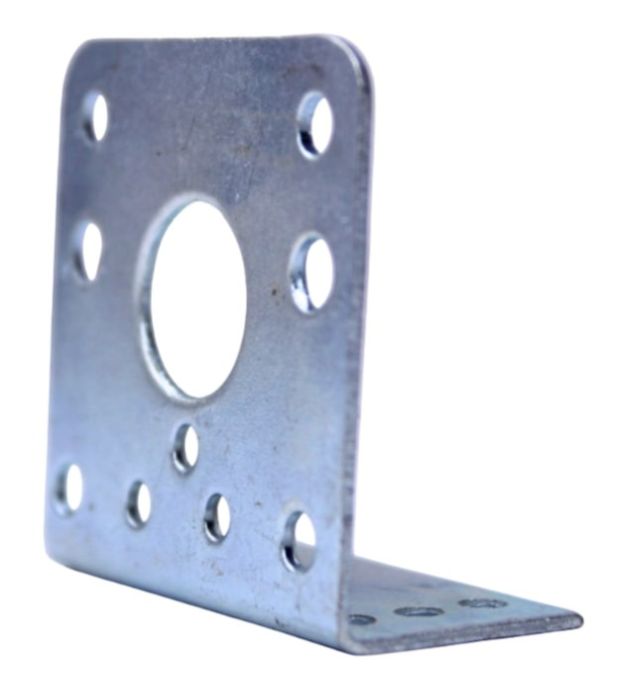

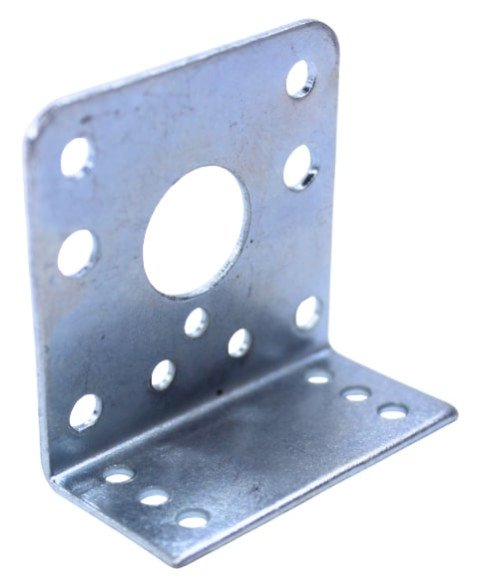

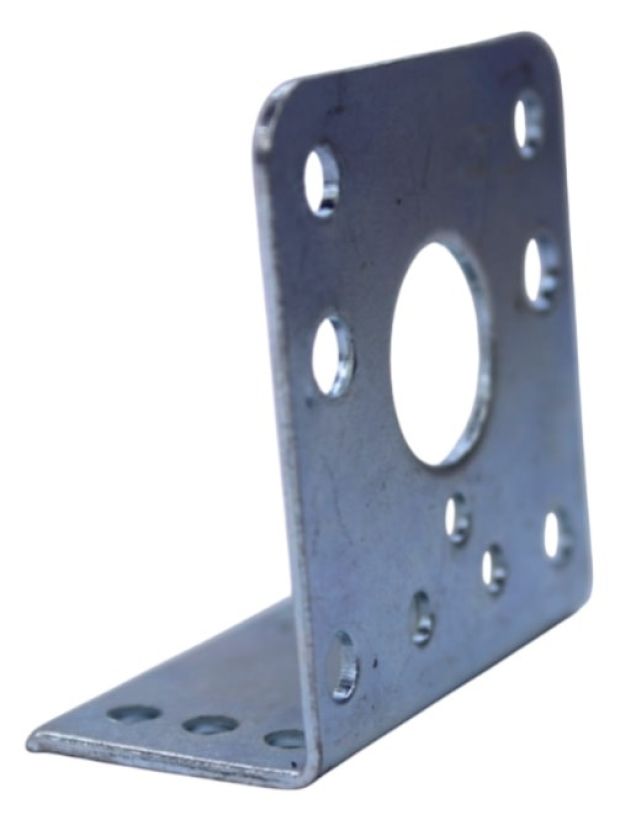

The CS Clamp / L-Type Motor Mount Bracket is an indispensable mechanical component for securely integrating motors into your robotics and automation projects. This durable L-type bracket is the most common and reliable solution for mounting a variety of small to medium-sized motors, including BO motors and other standard DC gear motors. It provides a solid and stable platform that ensures your motors are held firmly in place, which is critical for maintaining proper wheel alignment and overall structural integrity in robot chassis and other moving mechanisms.

Crafted from high-quality materials like mild steel or strong plastic, this mount is built to withstand the torque and vibrations of the motor without bending or breaking. Its design features two sets of precisely drilled holes: a larger set for attaching the motor and a smaller set for mounting the bracket to your chassis or a breadboard. This standardized hole pattern, often compatible with common M3 screws, makes assembly quick, easy, and versatile. Whether you are building a DIY robot car, a line follower, or a complex robotic arm, this motor mount bracket is a fundamental part of the build. It simplifies the mechanical design process and ensures that your power source—the motors—is securely fixed, allowing you to focus on the electronics and programming. The L-type shape offers a stable, right-angle mounting solution that is a staple in educational and hobby robotics kits.

The CS Clamp / L Clamp is a pre-molded plastic or metal bracket specifically shaped to mount BO motors or small DC geared motors onto a robotic chassis securely. Designed for easy installation, it comes with mounting holes for bolts and ensures a firm grip over the motor body.

It provides structural stability and proper alignment during movement and is a must-have accessory for line followers, obstacle avoiders, Bluetooth-controlled cars, and IoT-based robotic vehicles.

Key Features:

• Compatible with BO motors and standard DC geared motors

• Provides secure 90° L-type mounting

• Helps maintain motor orientation and alignment

• Comes with pre-drilled holes for screws

• Lightweight and easy to install

• Ideal for DIY robotic chassis, smart cars, and automation platforms

• Available in plastic or metal variants

Technical Specifications:

Applications:

• BO motor mounting in 2WD and 4WD chassis kits

• Motor holding clamp in smart robot cars

• Obstacle avoiding, line follower, Bluetooth robots

• DIY educational STEM projects

• IoT and embedded system mobile bases

• Prototyping robotic frames and automation arms

How to Use:

1. Place the BO/DC motor in the clamp

2. Align the clamp holes with the chassis

3. Fix with M3 screws and nuts (not always included)

4. Ensure the shaft is unobstructed and aligned

5. Wire the motor and test using a driver circuit (e.g., L298N)

Package Includes:

• 1 x CS Clamp / L Clamp for BO or DC Motor
