Detailed Description:

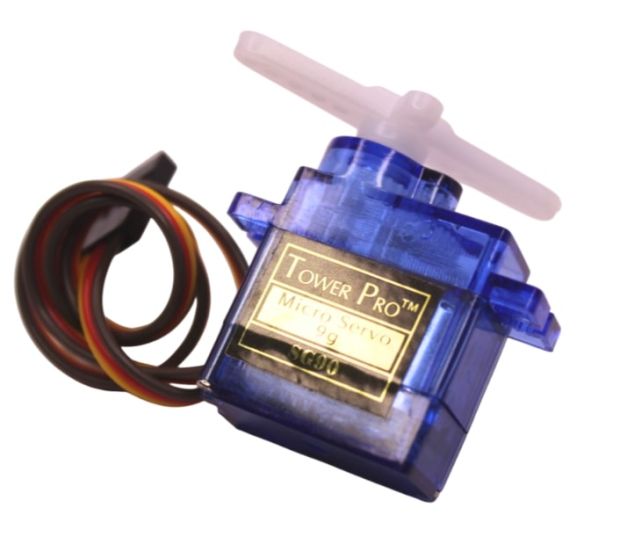

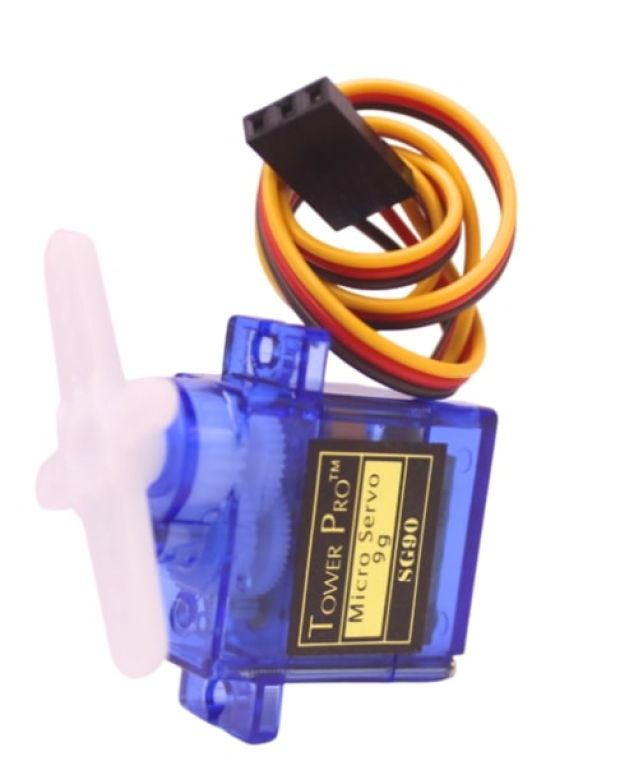

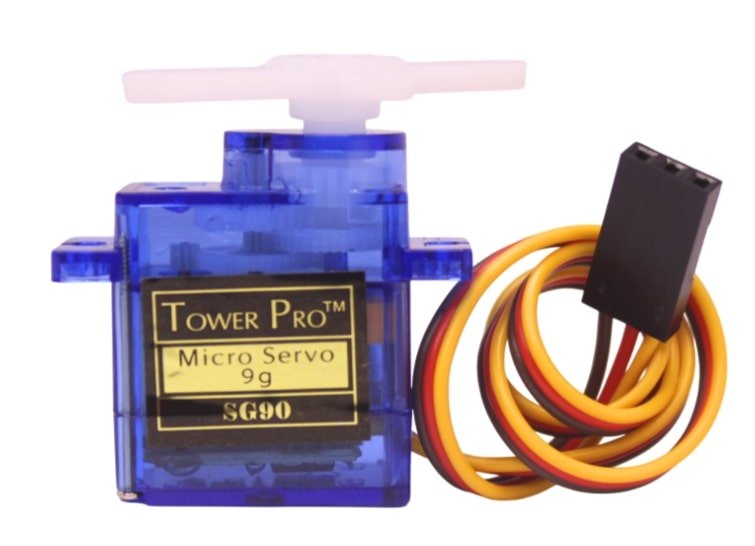

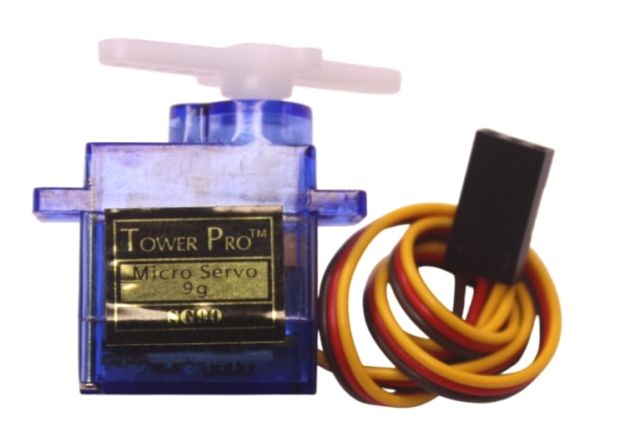

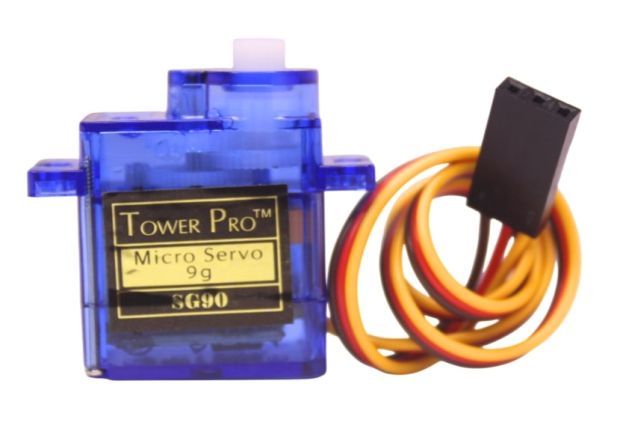

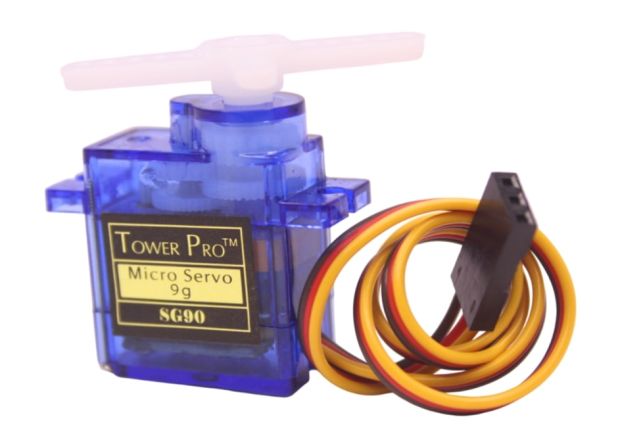

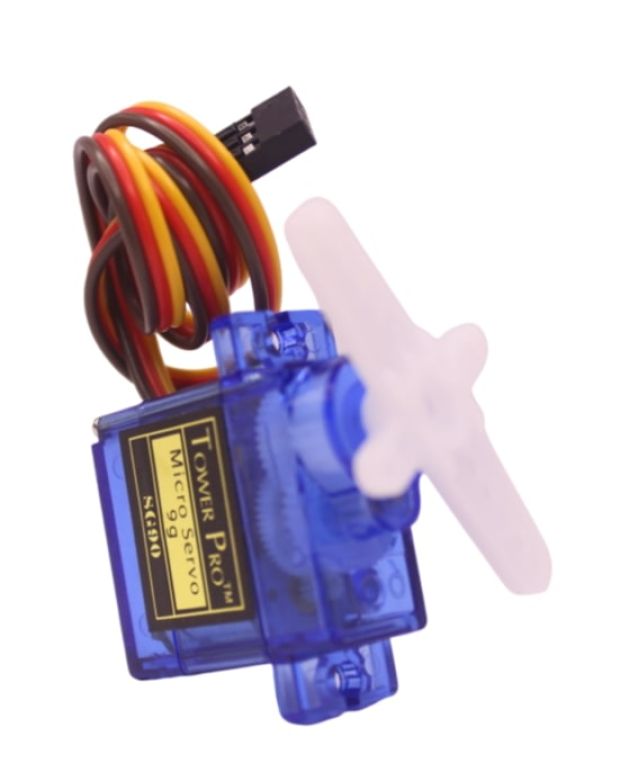

The SG90 9g Micro Servo Motor is one of the most commonly used servo motors for hobbyist electronics and robotics. It provides accurate 180° rotation (90° in either direction) and operates on PWM (Pulse Width Modulation) control. With an operating voltage of 4.8V–6V, it’s compatible with Arduino, Raspberry Pi, and other microcontrollers. This servo includes 3 servo horns (arms) and mounting screws, making it ready for installation in robotic arms, sensor platforms, RC toys, and mechatronic systems.

Key Features:

• High-quality plastic gear servo

• 180° rotation range

• Lightweight (only 9g) and compact

• Controlled via PWM signal

• Operates on 5V logic, perfect for microcontrollers

• Includes servo horns and screws

• Low power consumption

• Plug & play with Arduino and similar platforms

Technical Specifications:

How to Use:

1. Connect the servo’s brown wire to GND, red wire to 5V, and orange wire to PWM signal pin (e.g., Arduino pin 9).

2. Use the Arduino Servo library for easy control:

   #include

   Servo myServo;

   void setup() {

   myServo.attach(9);

   myServo.write(90); // move to middle position

   }

   void loop() {

   myServo.write(0);

   delay(1000);

   myServo.write(180);

   delay(1000);

   }

3. Make sure not to exceed 6V input, as this may damage the motor.

Applications:

• DIY robotics and robotic arms

• Arduino and Raspberry Pi projects

• Remote-controlled cars and planes

• Pan & tilt camera platforms

• Mini automation systems

• Animatronics and model making

• Educational electronics kits

Package Includes:

• 1 x SG90 9g Micro Servo Motor (180° Rotation)

• 3 x Servo Horns (Arm Sets)

• 3 x Mounting Screws
