Detailed Description:

Unlock the world of biomedical electronics with the ECG Sensor Module AD8232, a high-precision solution for monitoring heart rate and electrical signal activity. This integrated module is the perfect tool for students, hobbyists, and researchers looking to build projects in wearable health devices, fitness trackers, and remote patient monitoring systems. At the core of the module is the advanced AD8232 integrated circuit, which acts as a powerful signal conditioning block to extract, amplify, and filter the small biopotential signals of the heart, even in the presence of noise from motion or other electrical sources.

The module operates on a low-power supply of 3.3V DC and is designed to be easily interfaced with a microcontroller. It provides a clean analog output signal that can be directly read by an Arduino, ESP32, or Raspberry Pi. This makes it straightforward to display a real-time electrocardiogram (ECG) waveform on a serial plotter, LCD screen, or mobile app. The kit comes complete with a professional sensor cable and three disposable patch electrodes, enabling immediate use out of the box.

A crucial safety and usability feature is the leads-off detection functionality, which provides a digital signal to confirm that the electrodes are making proper contact with the skin, ensuring the accuracy of your readings. With its low power consumption, excellent noise rejection, and ease of use, the AD8232 ECG sensor module is the go-to component for any project that requires reliable and accurate cardiac signal monitoring. Whether you are developing an academic project or an innovative IoT health device, this module offers a robust and cost-effective solution for your electronics and biomedical applications.

The ECG Sensor Module with Patch (often based on the AD8232 or similar IC) is designed to measure the electrical activity of the human heart (ECG/EKG) via skin-contact electrodes. The included gel patch leads provide clean, stable signals from the chest or limb placements, making it ideal for DIY health monitoring, research, and educational projects.

It features analog output, which can be fed into ADC pins on Arduino, ESP32, or STM32 boards, allowing you to visualize and analyze live heart rate waveforms. The module includes built-in amplification and filtering to reduce noise and motion artifacts.

Key Features:

• Accurately captures electrocardiogram (ECG/EKG) signals

• Includes patch cables and electrode pads for ready-to-use setup

• Compatible with Arduino, Raspberry Pi, ESP32, STM32, etc.

• Onboard low-noise amplifier and filter circuitry

• Real-time analog output for waveform visualization

• Compact and wearable form factor

• Built-in LED indicator for heartbeats (on most variants)

• Ideal for medical students, researchers, and IoT developers

Technical Specifications:

How to Use:

1. Connect the 3.5mm patch lead cable to the ECG module.

2. Apply gel electrodes to your chest or arm (RA, LA, RL positions).

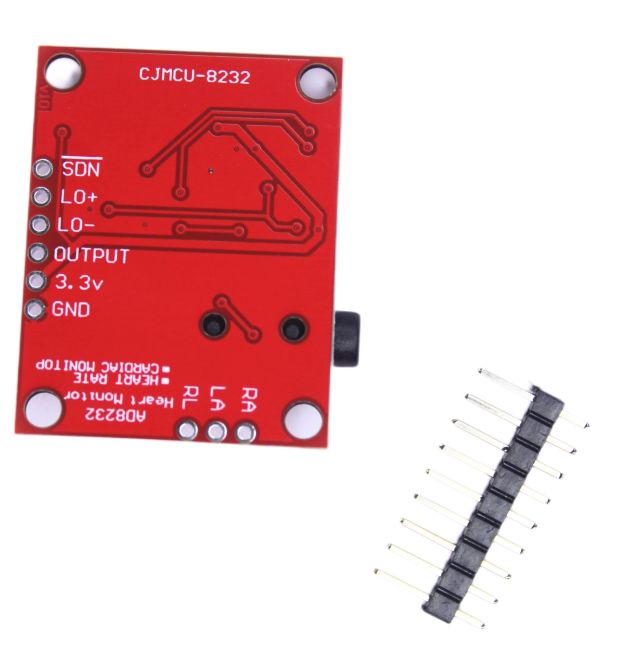

3. Connect VCC, GND, and OUTPUT pin to your microcontroller.

4. Read the analog signal and plot waveform on Serial Plotter or display.

5. Use filtering or averaging to remove motion noise.

Arduino Sample Code:

#define ECG_PIN A0

void setup() {
  Serial.begin(9600);
  pinMode(ECG_PIN, INPUT);
}

void loop() {
  int ecgValue = analogRead(ECG_PIN);
  Serial.println(ecgValue); // Plot this on Serial Plotter
  delay(1);
}

Use Arduino Serial Plotter or external tools (MATLAB, Python) to visualize the ECG waveform.

Applications:

• Heart rate monitoring systems

• Wearable health devices

• Remote health diagnostics (IoT)

• Fitness and sports tracking prototypes

• Biomedical signal acquisition in research

• Education and healthcare demo systems

• Rehabilitation and patient monitoring

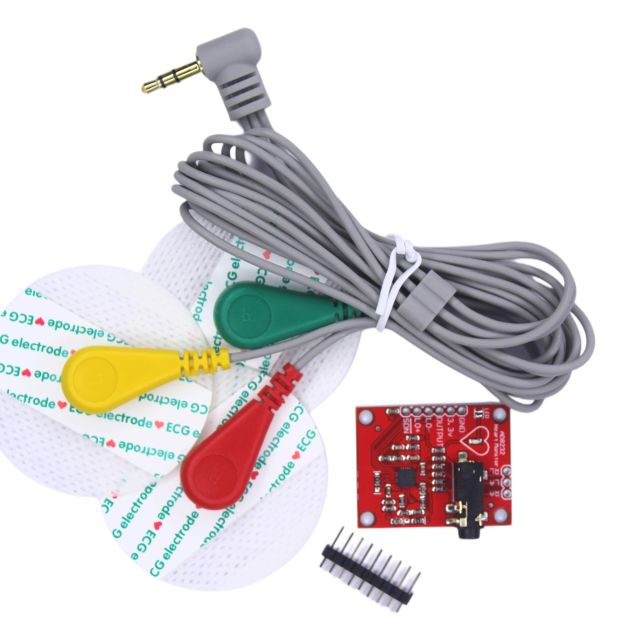

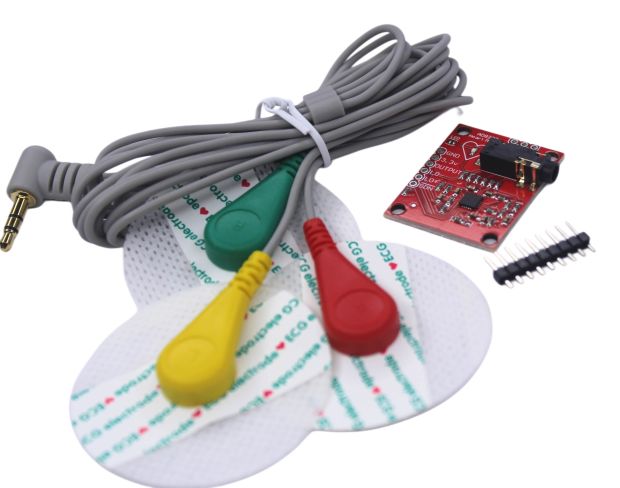

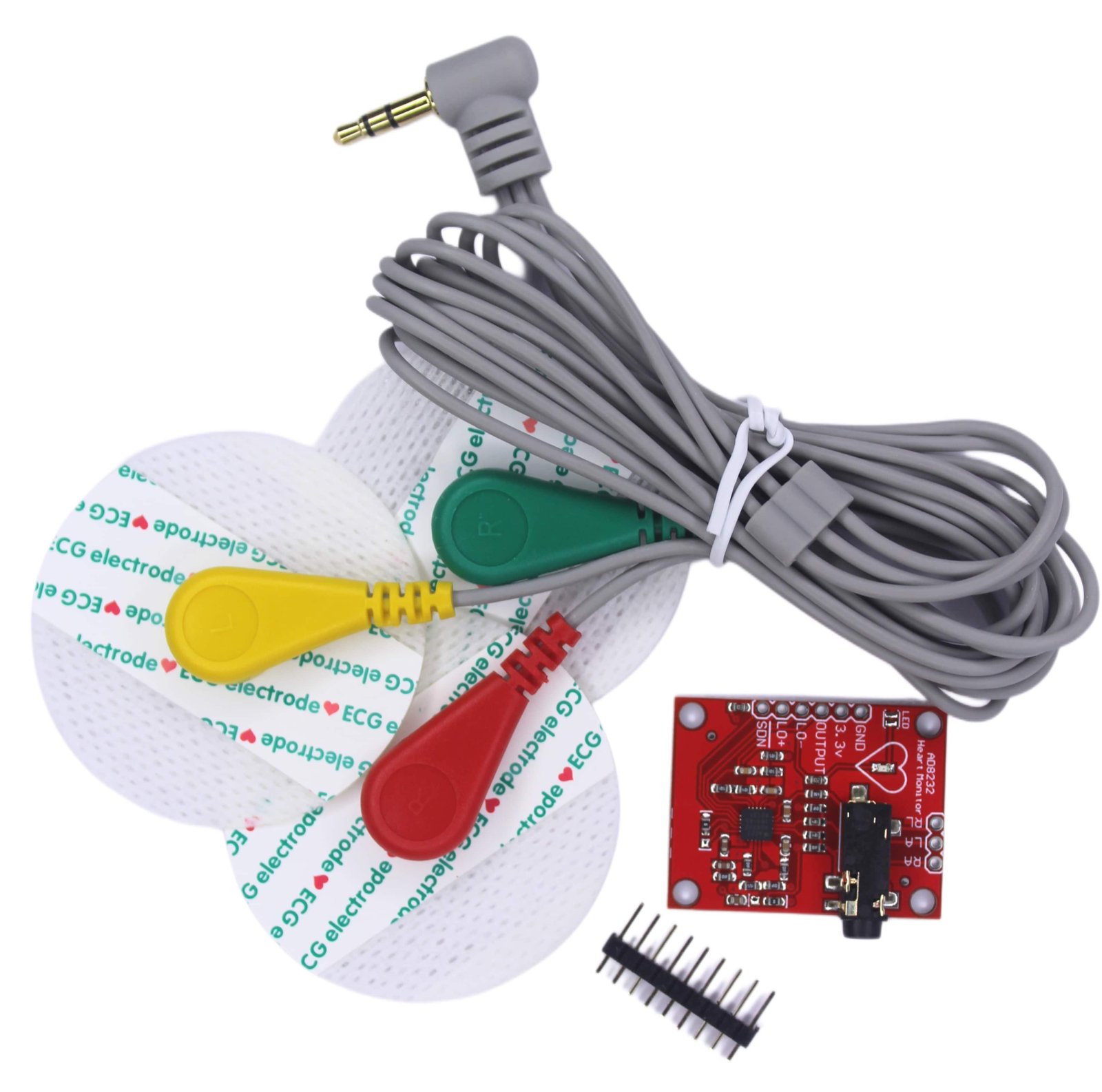

Package Includes:

• 1 x ECG Sensor Module (AD8232 or compatible)

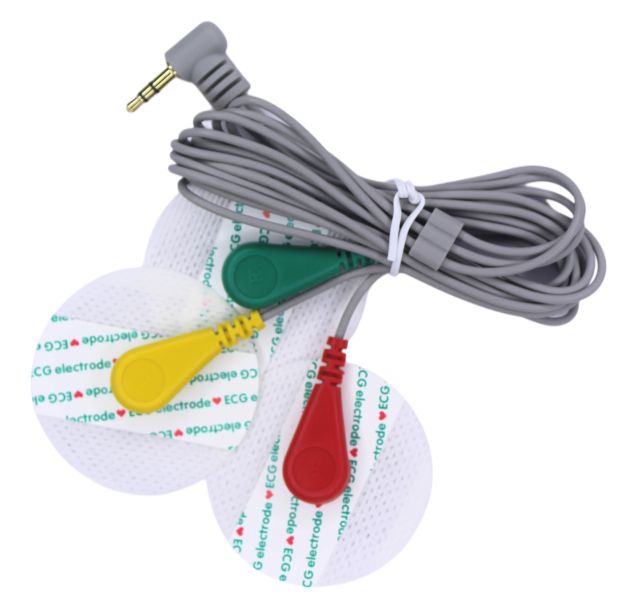

• 1 x Patch lead cable (3-lead)

• 3 x ECG disposable electrode gel pads

• 1 x Connecting headers (unsoldered)
