Here is a complete and concise description of the ESP32-CAM Shield (ESP32-CAM Shield Board):

???? ESP32-CAM Shield – Description

???? Overview:

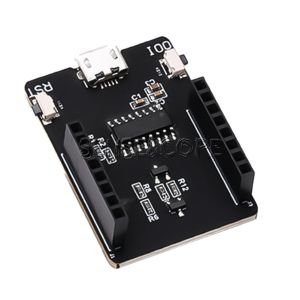

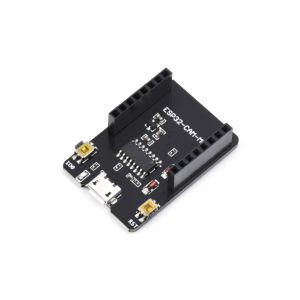

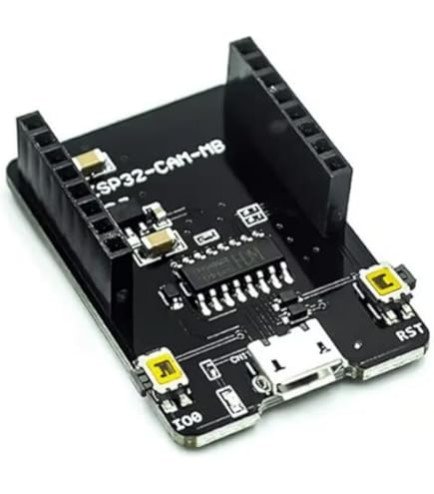

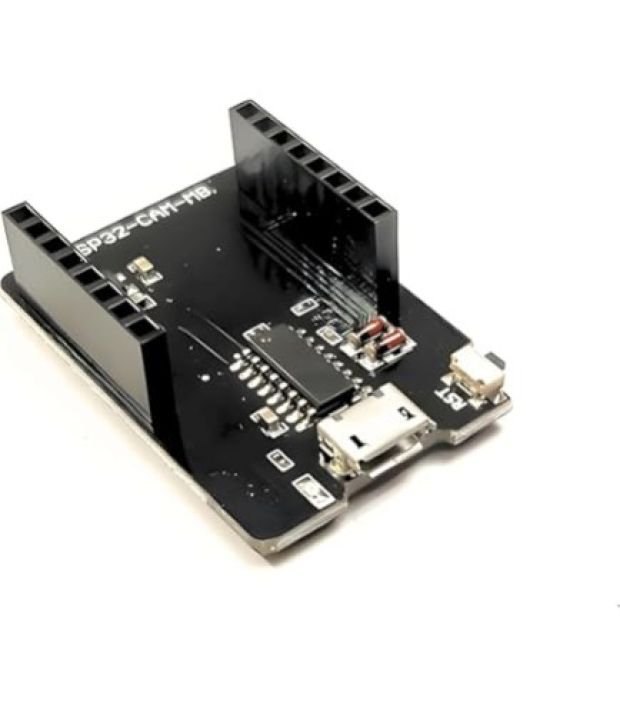

The ESP32-CAM Shield is an interface board specifically designed to make working with the ESP32-CAM module easier. It provides a USB-to-serial interface (via CH340 or CP2102 chip) and simplified power connections, enabling plug-and-play programming of the ESP32-CAM board without additional wiring.

This shield is especially useful because the ESP32-CAM lacks a built-in USB port, making the shield essential for easy uploading of code and powering the module.

⚙️ Key Features:

• ???? USB to Serial Converter
  – Based on CH340G or CP2102 chip
  – Allows direct USB connection for uploading code to ESP32-CAM

• ⚡ Power Management
  – Includes 5V and 3.3V regulators
  – Stable power delivery to the ESP32-CAM

• ????️ Programming Mode Selection
  – Auto-reset and boot mode handling for easy programming
  – No need to manually press IO0 and RST buttons

• ???? Plug-and-Play Socket
  – Female header designed to fit ESP32-CAM module perfectly
  – No messy jumper wires

• ???? LED Indicators
  – Power and serial activity indicators

• ???? Compact Size
  – Small form factor for breadboard-friendly use

???? Specifications:

???? Applications:

• Programming the ESP32-CAM module easily via USB

• Powering the ESP32-CAM with stable voltage

• Prototype projects using ESP32-CAM for camera streaming, face recognition, or remote surveillance

• Integration into IoT projects with Wi-Fi + Camera

✅ Why Use an ESP32-CAM Shield?

• Eliminates the need for an external FTDI adapter

• Reduces wiring errors and setup time

• Makes development and debugging smoother for beginners and makers
